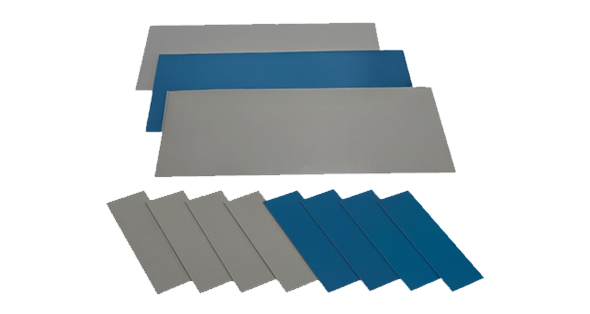

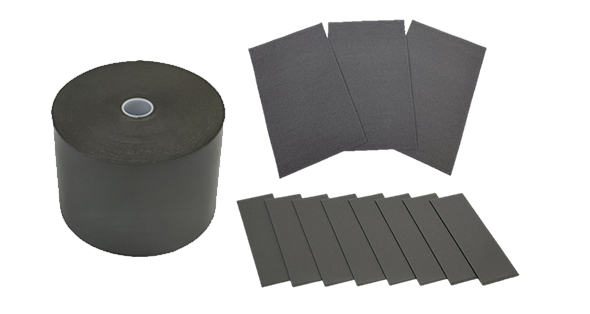

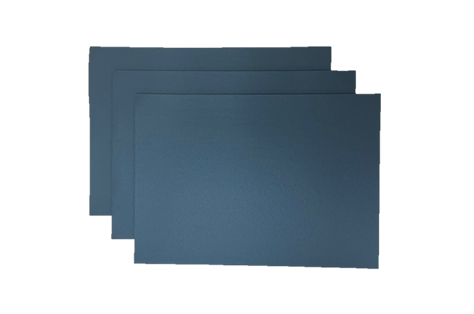

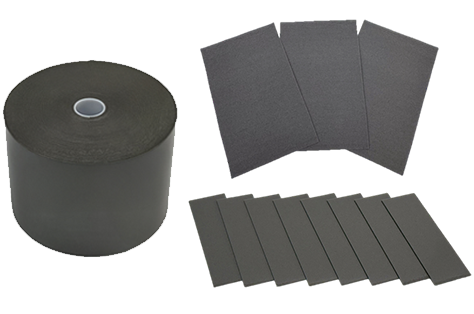

Compression Pad
Key material for thermal runaway prevention in EV/ESS, with excellent compressibility, shock absorption, and non-combustibility.01Applications

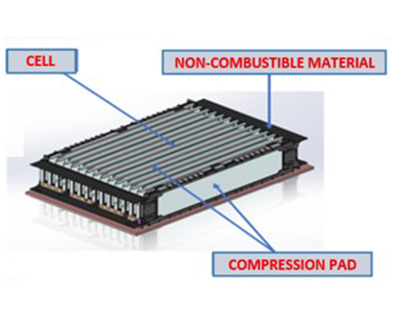

Module (pack)

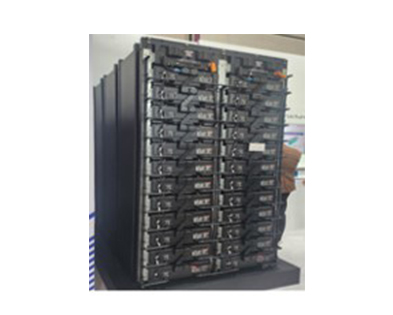

Rack
ESS
Module

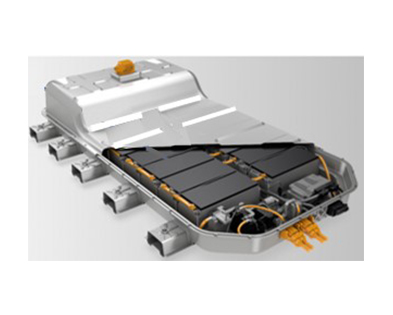

Pack

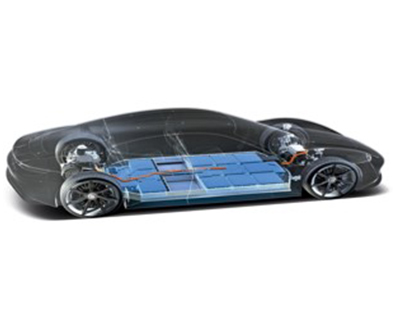

EV
02Tailored to Customer Needs
03CS Series
| Description | Unit | AMCP 10 | AMCP 30 | AMCP 50 | Test Method |
|---|---|---|---|---|---|
| Color | - | GRAY | Visual | ||
| Thickness | mm | 2~5 | 2~5 | 2~5 | - |
| Hardness | Shore 00 | 10±2 | 30±10 | 50±10 | ASTM D2240 |
| Specific gravity | g/cm3 | 0.2±0.03 | 0.3±0.03 | 0.4±0.04 | ASTM D792 |
| Compression Force Deflection | 20% FTCKgf/cm2 | >0.08 | >0.15 | >0.20 | ASTM D3574 |
| 40% FTCKgf/cm2 | >0.15 | >0.30 | >0.40 | ||
| Flame Resistance | UL94 | V0 | V0 | V0 | UL94 TEST |
04Product Features
- feature 01Implements highly consistent rebound elasticity across a wide range of compression levels.
- feature 02Ensures long-term material performance stability under various exposure environment cycles caused by battery charging and discharging.
- feature 03Meets fire resistance standards of UL-HBF or higher.
- feature 04Prevents damage to battery packs caused by deformation due to the expansion and contraction of secondary battery cells during charging and discharging.
- feature 05Provides cushioning functionality while simultaneously blocking heat transfer between battery cells.
- feature 06Serves as a compression pad capable of delaying and preventing flame propagation during thermal runaway-induced ignition.
